Engineered for global OEMs, LEAPENERGY‘s third-generation battery pack sets a new standard in EV performance. With advanced CTC technology and enhanced thermal safety, it eliminates thermal propagation risks. Optimized BMS strategies extend battery life, while rigorous testing ensures reliability， powering the future of electric mobility.
EV/REEV Battery Pack (400V&800V)
ISO 26262UN38.3UL
Features of Our EV Battery Pack
3 Standard Cells (prismatic)
148/208/300mm width to cover all the LPM EV/REEV vehicle platforms
148mm standard
300mm standard
208mm standard
QC Capability
Support 1.8/2.2/4C-rate quick charging at 400V & 800V
LFP battery technology

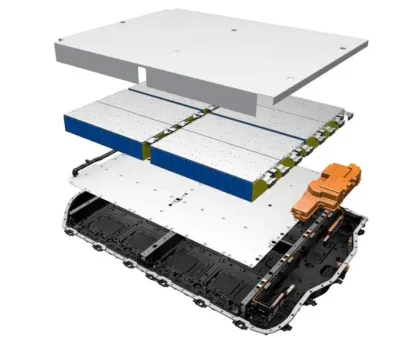

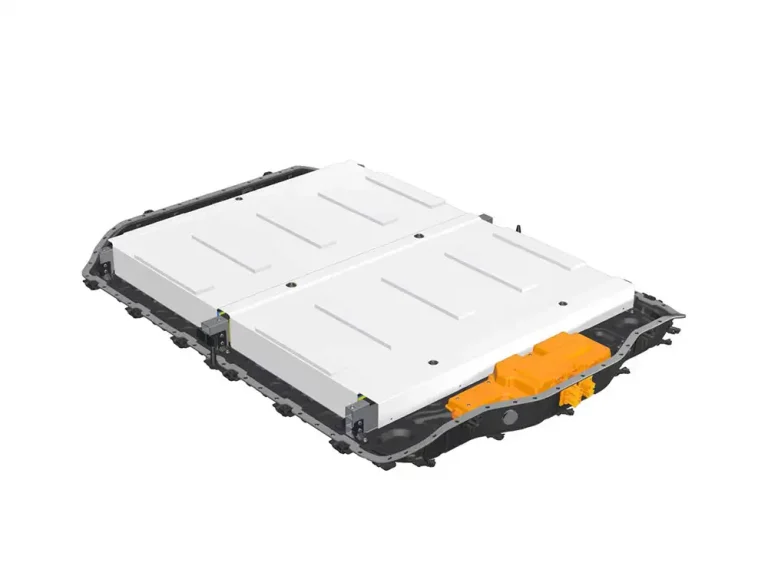

CTP and CTC designed to achieve high energy density, replacing the NCM cell solution.
Rich Cell Suppliers Resources
Main cell suppliers conclude CATL/CALB/Gotion/ZENERGY/EVE
| Item | PACK1 | PACK2 | PACK3 | PACK4 | PACK5 |
|---|---|---|---|---|---|
| Cell capacity | 139Ah | 210Ah | 120Ah | 103Ah | 114Ah |
| Energy | 52.9kWh | 69.9kWh | 81.9kWh | 67.7kWh | 74.9kWh |
| Quick chargeSOC30 to 80% | 30min | 30min | 15min | 15min | 15min |
| Normal voltage | 380.4V | 332.85V | 682.6V | 657.3V | 657.3V |
| Volumeutilization | 79% | ||||
| Cooling system | Liquid cooling | ||||
| Housing | Platemetal | ||||
| ThermalManagement | Heating rate≥0.7℃/minTemp.difference≤2℃ | ||||
| Dimensions | 2070mm*1551.6mm*150mm | ||||
High Safety

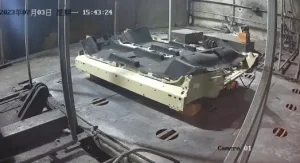

Thermal propagation

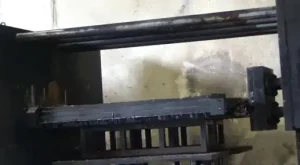

100kN crush

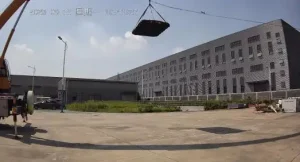

5m drop

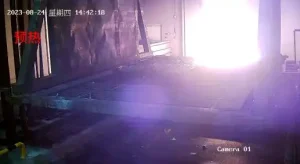

PACK fire test,130s
High Intelligence
| Item | New design | Original design |
|---|---|---|
| Voltage | ≤500VDC | ≤400VDC |
| Current | ≤406A | ≤250A |
| Temperature | -40℃~85℃ | -40℃~85℃ |
| Dimensions(L/W/H) | 464*115*103.4mm | 596*169*93.7mm |
| Weight | 3.3kg | 4.05kg |
| Connection Points | 12 | 16 |
| Components | 15 | 31 |
| LV Wire-harnesses | 0 | 3 |
High integration
BMU+ Pre-charge module+ power distribution unit

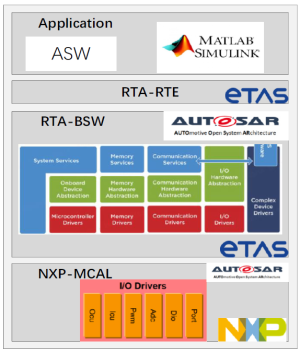

Gen3 BMS software based on Autosar
• Developed base on standard autosar (ETAS classic platform autosar)
• Fully implementation of Comm/Diag/OBD stack
• Cyber security (secure boot, secure download, secure storage)
• ASIL D
• ASPICE Lv2
Quality Performance
We are committed to a quality-first strategy with zero errors, zero defects, and zero complaints. Our dedication ensures industry-leading performance that is stable, reliable, and fully guaranteed..

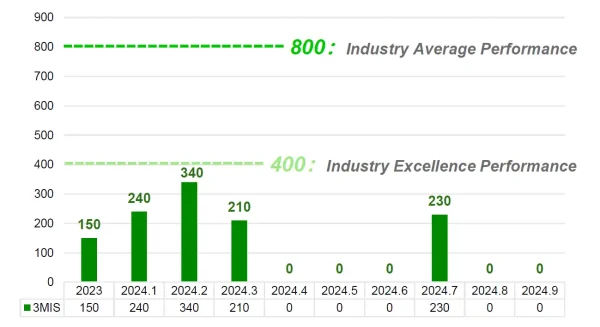

3MIS

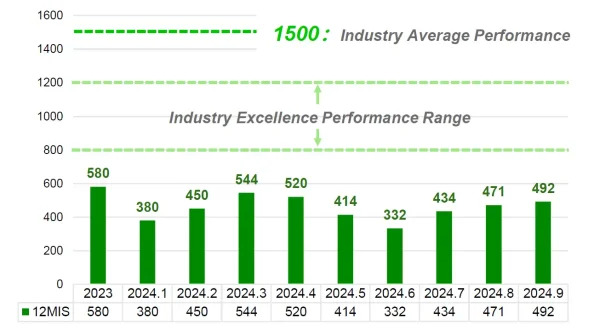

12MIS
NOTE: MIS (Mechanical Intrusion Sensor) in EV battery packs detects physical damage or intrusion into the battery casing, often caused by collisions or impacts.
Our Valued Partners
LEAPENERGY specializes in delivering high-performance, professional-grade battery pack solutions tailored to the unique needs of B-side clients in the new energy industry. We are committed to excellence in quality, reliability, and technical innovation to support your most demanding projects.
Partnering with LEAPENERGY means benefiting from industry-leading quality assurance and comprehensive, end-to-end technical support.
FAQs
Which Vehicle Types are Compatible with LEAPENERGY Battery Packs?
Our battery packs are compatible with EVs, REEVs, PHEVs, and low-speed electric vehicles, supporting various platform requirements.
Does the Battery Pack Include a Battery Management System (BMS)?
Yes, all our battery packs come with an intelligent BMS supporting CAN/RS485 communication, real-time monitoring, protection, and remote diagnostics.
Does LEAPENERGY Offer Custom Battery Pack Design Services?
Yes, we offer full customization services including structure, size, electrical specifications, and interfaces to meet various OEM requirements.
Are LEAPENERGY Battery Packs Certified?
Yes, our battery packs are UN38.3 certified. IEC 62660 and UL2580 certifications can be provided upon request.
What is the Protection Rating of the Battery Pack?
Our standard battery packs are rated IP67, suitable for water immersion and dusty environments.
What is the Lead Time and Minimum Order Quantity (MOQ)?
Sample delivery takes 3–4 weeks, while mass production usually takes 6–8 weeks. The MOQ is 5 units, negotiable based on the project.
