Commercial energy storage systems
LEAPENERGY provides automotive-grade energy storage solutions for commercial and industrial applications, ensuring high safety, long lifespan, and easy maintenance with standardized modular design.

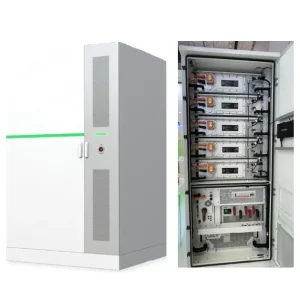

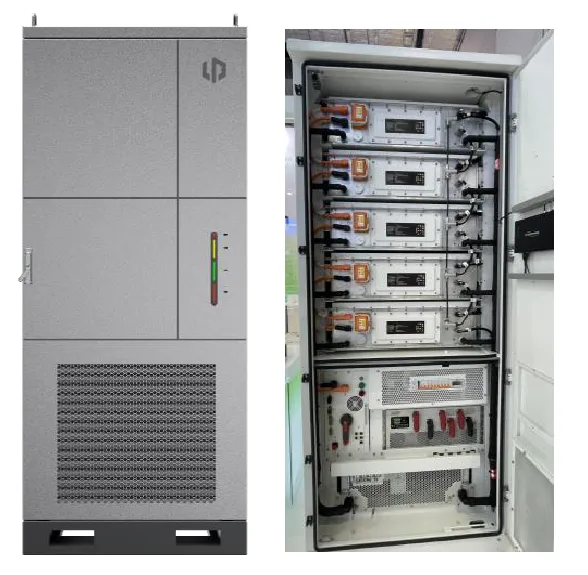

261kWh Liquid cooling cabinet
The commercial & industrial liquid-cooling energy storage DC cabinet is an outdoor product that uses innovative liquid cooling technology and integrates LFP battery system, inverter, energy management system, liquid-cooling system, and fire protection system.
A single system is composed of 5 battery modules connected in series, suitable for scenarios such as peak shaving and valley filling on the user side, demand side response, and energy costs minimization.
| All-in-one Commercial & Industrial ESS | |
|---|---|
| Model | I02-125KN-261 |
| Grid connected AC side | |
| Rated output power(kW) | 125 |
| Rated grid voltage(V) | 380/400 |
| Voltage range | -15%-15% |
| Grid voltage frequency(HZ) | 50/60 (-2.5-2.5) |
| Communication access method | Three-phase, four-wire |
| Output current (A) | 180 |
| Power factor | 0.99/-1~1 |
| Current harmonics (THDi) | ≤3% |
| Charge discharge conversion time | ≤100ms |
| DC side of battery | |
| Cell capacity (Ah) | 314 |
| Serial parallel method | 1P52S*5 |
| Rated voltage (V) | 832 |
| Working voltage range(V) | 702~949 |
| Rated capacity (kWh) | 261.248 |
| Rated charging & discharging ratio | 2h rate |
| Basic information | |
| System efficiency | ≥88% |
| Working temperature (C) | -20~55 |
| Allow relative humidity (RH) | 0-95%(no condensation) |
| Noise (dB) | ≤70 |
| Dimension (W*D*H) | 1000*1300*2350mm |
| Weight (T) | ≤2.6 |
| Protection grade | IP55 |
| Cooling method | Intelligent liquid-cooling |
| Firefighting method | Perfluorohexane pack level fire protection, reserved water fire protection interface |
| Altitude (m) | ≤3000 |
| Interface | 485+4G+LAN |
- Configuration 1P260S_1P52S*5
- Cell capacity 314Ah
- System rated voltage 832V
- System rated energy 261kWh
- IP degree IP55
- Weight 2600kg
417kWh Liquid cooling cabinet
Commercial & industrial liquid-cooling energy storage DC cabinet is a pure DC outdoor cabinet product that uses innovative liquid-cooling technology and integrates an LFP battery system, a liquid-cooling system, and a fire protection system.
A single system is composed of 8 battery modules connected in series, suitable for distributed new energy consumption and frequency regulation auxiliary services, and can meet the application needs of multiple scenarios such as distributed power stations and large ground power stations.
| Commercial & Industrial Liquid-cooling ESS (DC cabinet) | ||
|---|---|---|
| Model | I01-186KD-0372 | I01-208KD-0372X |
| Cell capacity | 280Ah | 314Ah |
| Rated capacity | 372.73Wh | 417.99kWh |
| Charging & discharging power | ≤186kW | ≤208kW |
| Serial parallel method | 1P416S | |
| Rated voltage | 1331.2V | |
| Working voltage range | 1164.8~1497.6V | |
| Rated charging & discharging rate | ≤0.5P | |
| Over voltage protection | √ | |
| Over current protection | √ | |
| Short circuit protection | √ | |
| Over temperature protection | √ | |
| System efficiency | ≥92% | ≥92% |
| Weight | 3.2T | 3.4T |
| Peak current | 35A | |
| Dimension (W*D*H) | 1420*1350*2300mm | |
| Working temperature | Charging temperature 0~45°C & discharging – 20~55°C | |
| Working humidity range | 5%~95%RH | |
| Noise | <75dB | |
| Protection grade | IP54 (battery compartment IP65) | |
| Firefighting methods | Cabinet level (aerosol)+PACK level (Perfluorohexane) | |
| Working altitude | ≤3000m | |
| Interface | RS485、Ethernet、CAN | |
| Certificates | GB/T 36276、GB/T 34131 | |
- Configuration 1P416S_1P52S*8
- Cell capacity 314Ah
- System rated voltage 1331V
- System rated energy 417kWh
- IP degree IP55
- Weight 3400kg

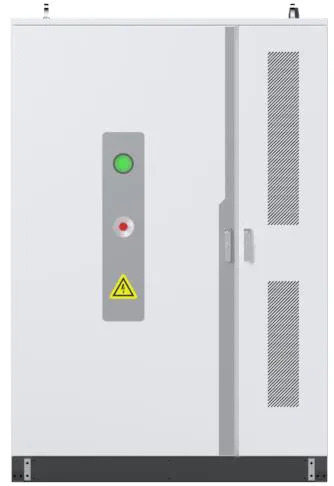

156kWh Air cooling cabinet
This product is mainly used for configuring a single 90-150kWh standard energy storage outdoor cabinet, and is applied to power auxiliary services such as frequency regulation and moment of inertia support.
It can adjust active power output through rapid charging & discharging when the grid frequency is higher than the target frequency, helping the grid restore frequency stability. The system has a fast response speed and plays a key role in grid frequency regulation.
| Commercial & Industrial Air-cooling ESS | |||
|---|---|---|---|
| Model | I01-150KN-156 | ||
| Basic information | Grid connected AC side | ||
| System efficiency | >89% | Rated output power | 150kW |
| Weight | 2.6T | Rated grid voltage | 400Vac |
| Working temperature | -30~60°C | Working voltage range | -20%~+15% |
| Working humidity range | 5~95%RH | Grid voltage frequency | 50/60Hz |
| Noise | <75dB | Communication access method | Three-phase, four-wire |
| Dimension (W*D*H) | 1500*1300*2200mm | Rated output current | 216A |
| Protection grade | IP54 | Power factor | 0.8cap~0.8ind |
| Firefighting method | Aerosol+Perfluorohexane | THDI | ≤3% |
| Working altitude | ≤3000m | DC side of battery | |
| Interface | RS485、Ethernet、 CAN | Cell capacity | 102Ah |
| Display mode | Local display screen | Rated capacity | 156.67kWh |
| Serial parallel method | 2P16S*15 | ||
| Rated voltage | 768V | ||
| Working voltage range | 672~864V | ||
| Charging & discharging rate | 1P | ||
- Configuration 2P16S*15
- Cell capacity 102Ah
- System rated voltage 768V
- System rated energy 156kWh
- IP degree IP54
- Weight 2850kg
5MWh Liquid cooling container
This product is applied to shared energy storage power stations, independent energy storage power stations, etc., providing various auxiliary services such as grid frequency regulation, peak shaving, and voltage regulation.
Its main advantage lies in its large power and capacity, which can handle large-scale energy storage needs. It plays an important role in supporting renewable energy grid connection, providing auxiliary services, and continuing investment in transmission and distribution infrastructure.
- High frequency data collection, cloud based online monitoring
- Active fire protection combination, thermal runaway alarm, designated fire extinguishing
- Refined air fluid design, good heat dissipation
- Electrical monitoring, energy management, dynamic operation strategy throughout the entire lifecycle
| Large Liquid-cooling ESS DC Side Compartment | ||
|---|---|---|
| Model | C02-2M23C-4470 | C02-2M50C-5010X |
| DC side of battery | ||
| Cell capacity | 280Ah | 314Ah |
| Rated capacity | 4.47MWh | 5.01MWh |
| Charging & discharging power | ≤2235kW | ≤2505kW |
| Serial parallel method | 12P416S | |
| Rated voltage | 1331.2V | |
| Working voltage range | 1164.8~1497.6V | |
| Rated charging & discharging ratio | ≤0.5P | |
| Basic information | ||
| Dimension (W*D*H) | 6500*2850*2896mm | 6058*2438*2896mm |
| Weight | 40T | 42T |
| Working temperature | -20~55°C | |
| Working humidity range | 0~95%RH configure dehumidifier air conditioner | |
| Noise | < 75dB | |
| Protection grade | IP55 | |
| Firefighting method | Perfluorohexane+PACK level +Cabin level + Proactive warning+ Water fire protection | |
| Working altitude | ≤3000m | |
| Interface | RS485、Ethernet、CAN | |
| Protection function | Overvoltage, overcurrent, short circuit, overtemper ature | |
| Certificates | GB/T 36276、GB/T 34131、 IEC60730/62619 | |
- Configuration 1P52S*8*12
- Cell capacity 314Ah
- System rated voltage 1331V
- System rated energy 5MWh
- IP degree IP55
- Weight 40t
Automotive-Grade
ESS Packs

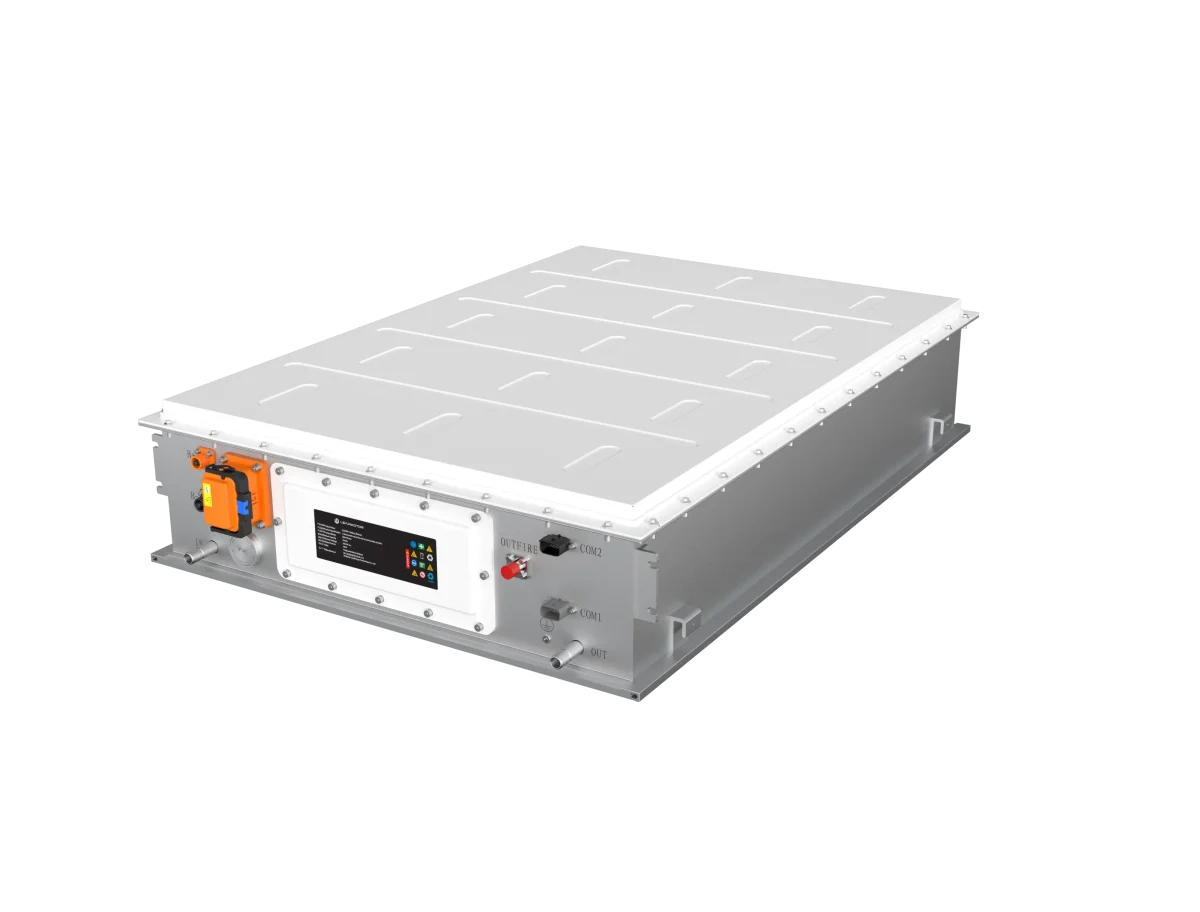

Liquid-cooling pack
1. IP65 enclosure protection, automotive level BMS
2. High capacity battery cells, integrated installation
3. PACK level fire protection, high-efficiency liquid-cooling channel design

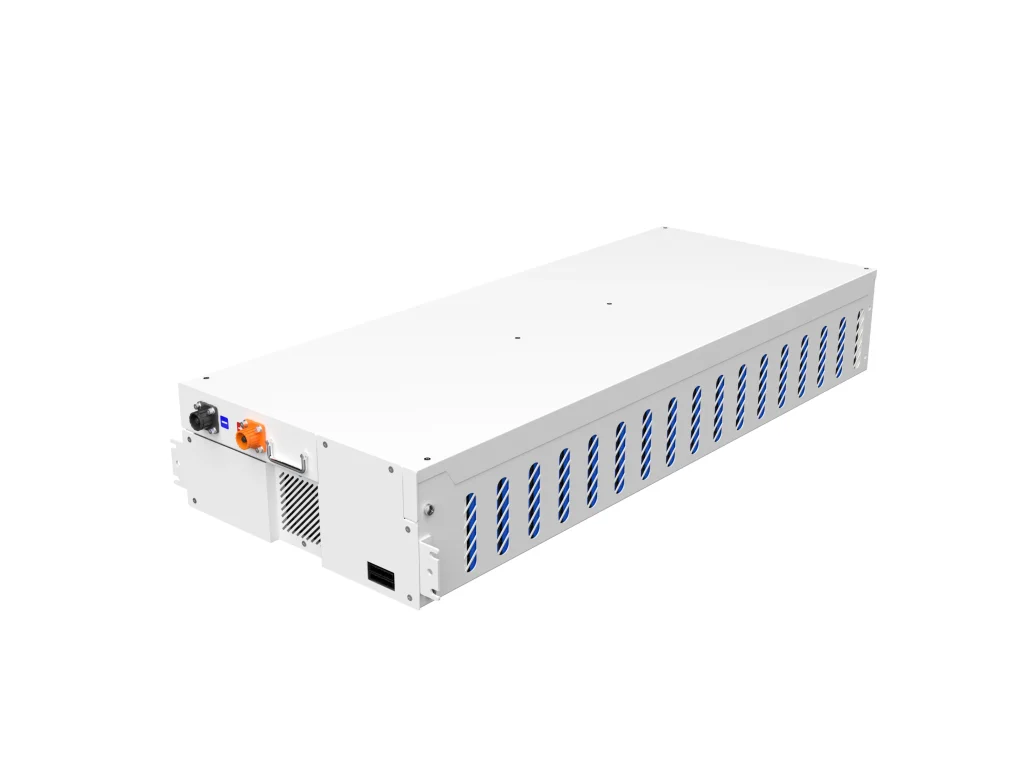

Air-cooling pack
1. Modular integration, compatible with multple battery modules.
2. Rationalized design facilitates module heat dissipation and thermal management.
3. Harmonica tube solution effectively improves heat dissipation efficiency.
- This product is applied to large energy storage containers and commercial & industrial energy storage cabinets, with standardized and modular design, which can meet the flexible configuration requirements of voltage and energy.
- Uses mainstream manufacturers’ battery cells and has automotive grade pack quality.
| Packs of Commercial and Large-scale ESS | |||
|---|---|---|---|
| Thermal management method | Liquid-cooling | Air-cooling | |
| Cell type | LFP | ||
| Model | I02-P46-4A | I02-P52-4A | I01-P10-3A |
| Cell capacity | 280Ah | 314Ah | 102Ah |
| Serial parallel method | 1P52S | 2P16S | |
| Rated capacity | 46.59kWh | 52.24kWh | 10.44kWh |
| Rated voltage | 166.4V | 51.2V | |
| Working voltage range | 140.4~187.2V | 43.2~57.6V | |
| Rated charging & discharging efficiency | ≥93% | ≥93% | |
| Dimension (W*D*H) | 1150*810*242mm | 409*1058*166mm | |
| Weight | 321kg | 332.5kg | 85kg |
| Protection grade | IP65 | IP20 | |
| Rated charging & discharging ratio | 0.5C | ||
| Interface | Daisy chain | ||
| Working altitude | ≤4000m | ||
| Working temperature | -20~55°C | ||
| Working humidity range | 5~95%RH | ||
| Firefighting methods | PACK with fire interface, fire protection options include perfluorohexane, heptafluoropropane, etc. | ||
| Certificates | GB/T 36276、 GB/T 34131 | ||
Our cell suppliers
- CELL
Established strategic-level cooperative relationships with many high-quality cell suppliers, with sufficient production capacity to meet a variety of business supply needs!
- BMS
Abundant key chip resources, have exchanges and cooperation with all mainstream AFE and MCU chip manufacturers in the market, and have completed the software and hardware program reserves!
AFE
MCU
Applications of C&I ESS
Renewable Integration
Smooth solar/wind power fluctuations with 92% round-trip efficiency. Our 20ft container ESS ensures stable renewable output, reducing curtailment by 30%.
Emergency Backup for Factories
Automotive-grade BESS provides 4-hour backup power for critical manufacturing lines, with seamless switchover <10ms to prevent production losses.
Port Shore Power Support
Replace diesel generators with 5MWh container ESS for shore power, reducing CO2 by 1,200 tons/year per port. DNV-GL certified for marine environments.
EV Charging Buffer
Avoid grid overload with 250kW ESS buffers for fast-charging stations. Enables 350kW ultra-fast charging without infrastructure upgrades.
Peak Shaving & Valley Filling
Reduce electricity costs by storing off-peak energy and discharging during peak hours. Our liquid-cooled ESS cuts peak demand charges by up to 40%, with 2h-rate discharge for sustained power.
Frequency Regulation
1C-rated air-cooled ESS responds in <500ms to stabilize grid frequency. Ideal for ancillary services with 99.9% accuracy, compliant with IEEE 1547 standards.
Real projects

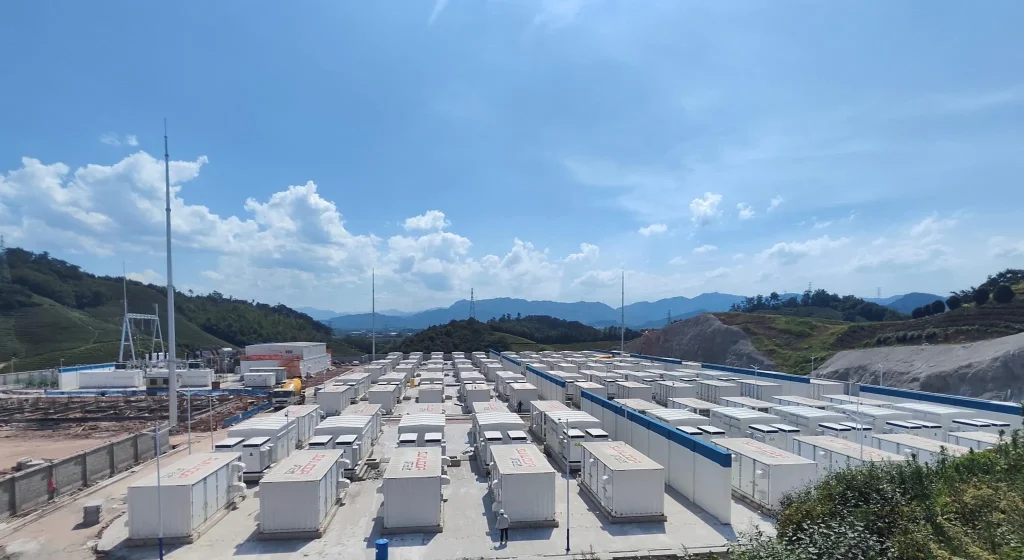

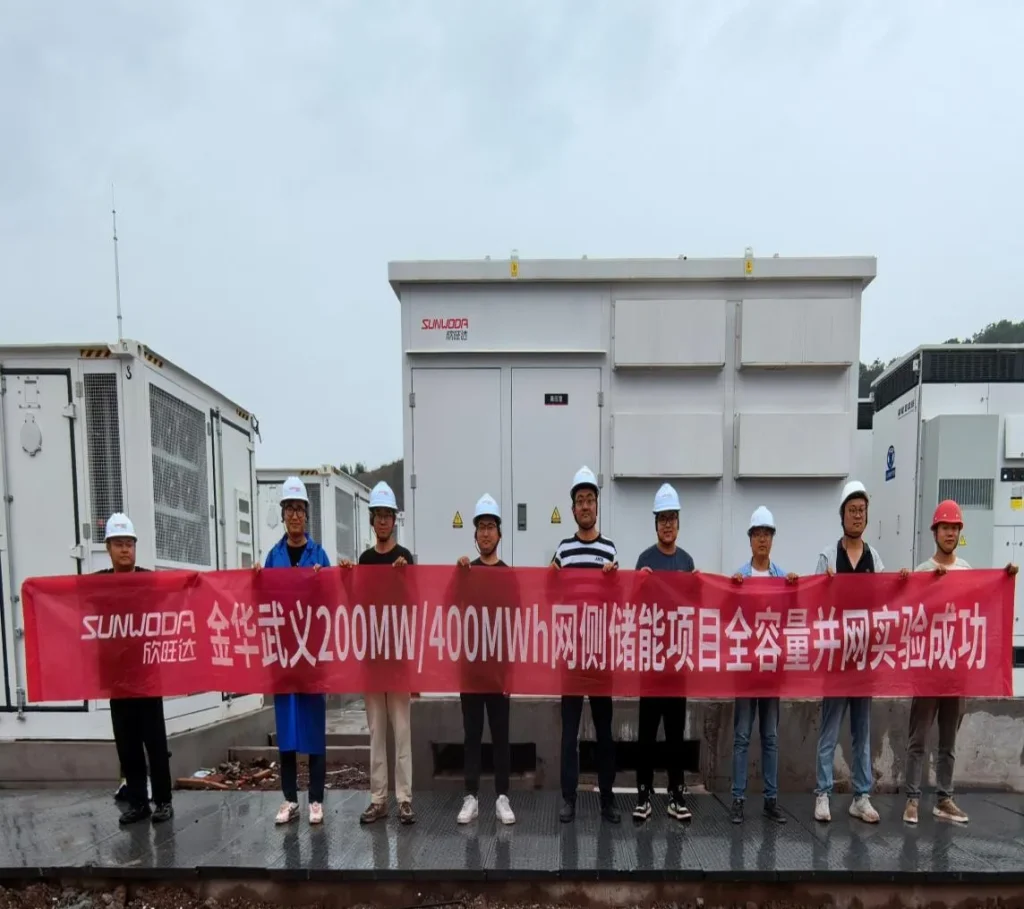

The largest shared energy storage project in Zhejiang, China – Wuyi 200MW/400MWh
Successfully passed the grid connection test of Wuyi 110MWh energy storage project：2024.6.27

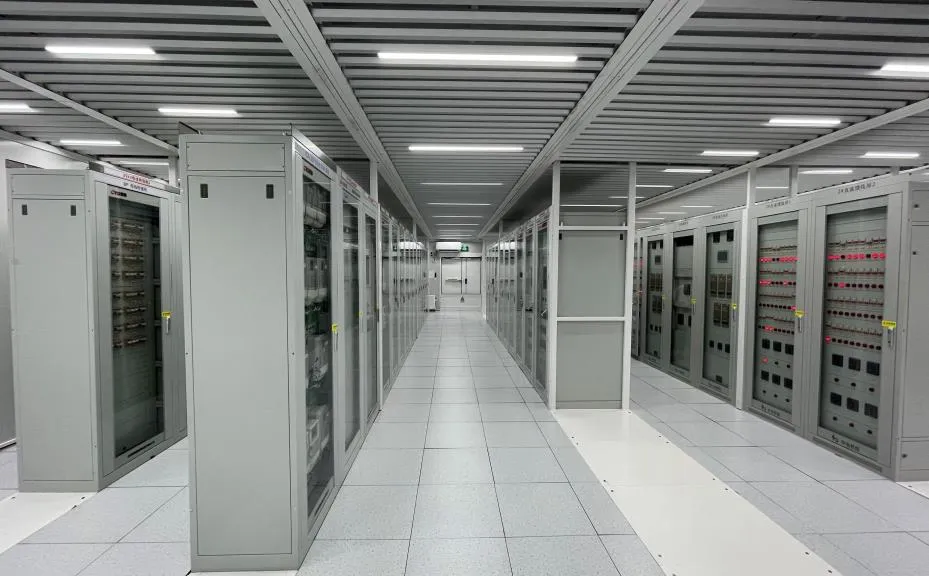

Substation Secondary Equipment
Energy Storage Project 5MW/10MWh：All-in-one Liquid-cooling ESS

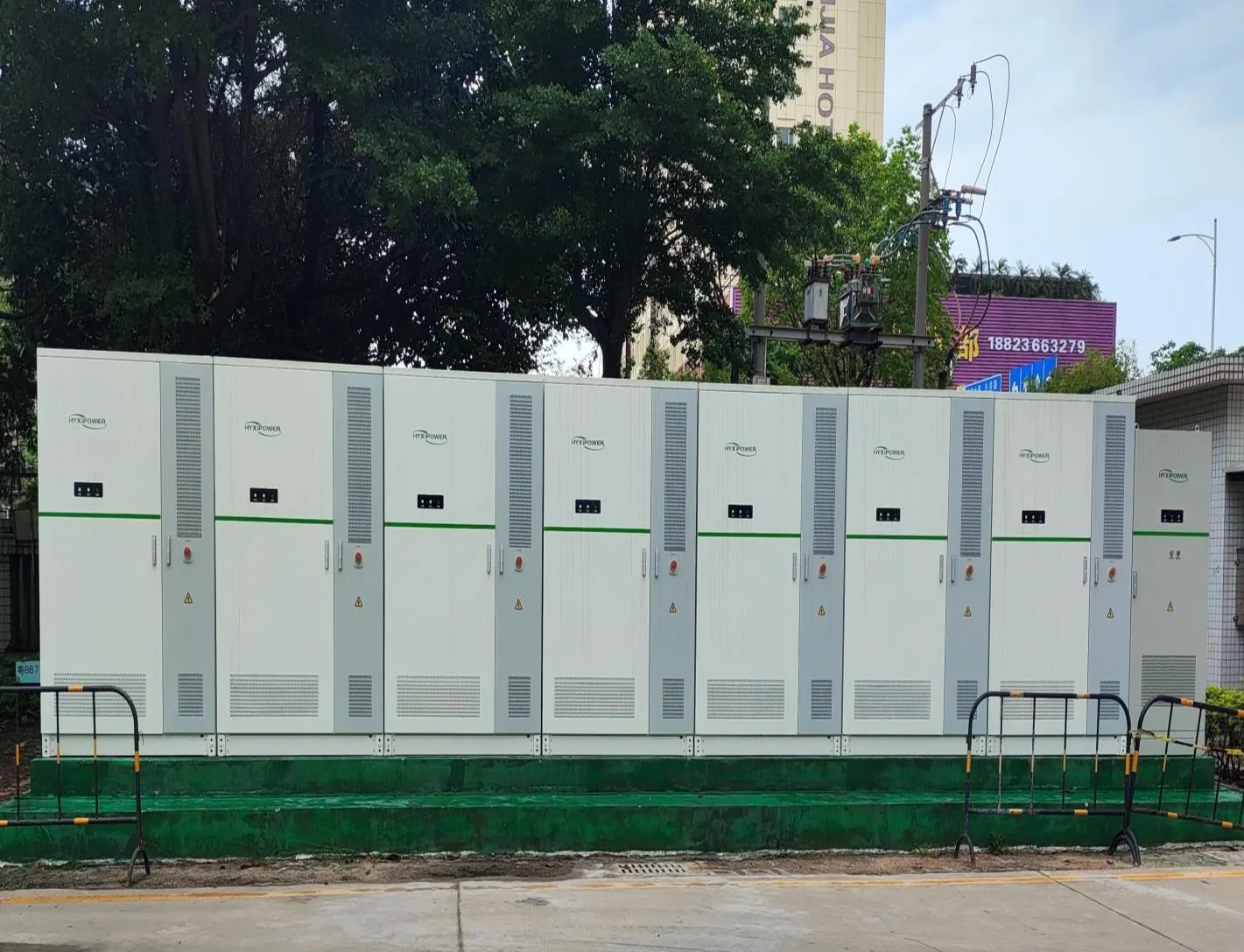

Distributed Liquid-cooling Energy Storage DC Cabinet –Power Grid Service

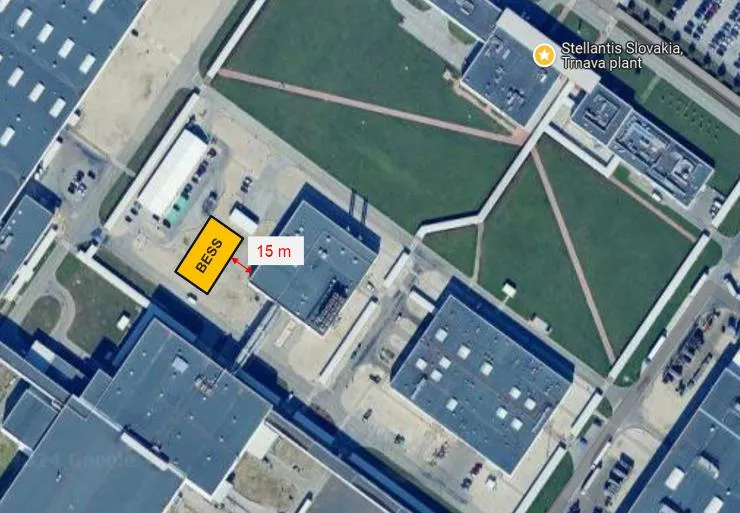

BESS project for TRNAVA plant (Stellantis), Slovakia
Power Your Business with Uninterrupted Energy！
request a custom solutionFAQs
What is the typical payback period for a C&I energy storage system?
3-5 years depending on local electricity tariffs and usage patterns. Systems used for peak shaving achieve faster ROI.
How does liquid cooling improve ESS performance?
30% better thermal management vs air cooling, enabling 2h-rate continuous discharge with zero thermal runaway risk.
Can your ESS integrate with existing solar/wind systems?
Yes. Our DC-coupled design achieves 92% round-trip efficiency with SMA/Sungrow inverters.
What safety certifications do your products have?
UL 9540, IEC 62619, GB/T 36276, and UN38.3 for transportation safety.
How long do the batteries last?
10+ years or 6,000 cycles at 80% DoD with LFP chemistry. 10-year warranty included.
Do you provide battery recycling?
Yes. Closed-loop recycling recovers 95%+ materials, complying with EU Battery Regulation.
